Thông tin chi tiết sản phẩm:
|
| Vật chất: | 50 triệu, 42CrMo | Đầu ra mô-men xoắn: | 800 Nm |
|---|---|---|---|
| OEM: | Có sẵn | Mô-men xoắn nghiêng: | 5000 Nm |
| Giữ mô-men xoắn: | 9200 Nm | động cơ: | DC 12V / 24V |
| Tốc độ sản xuất: | Dưới 1 vòng / phút | Đóng gói: | trường hợp ván ép |
| Làm nổi bật: | Hộp số truyền động mô men xoắn nặng,Hộp số truyền động quay vòng tốc độ thấp,Bộ theo dõi năng lượng mặt trời Hộp số truyền động quay dọc |
||

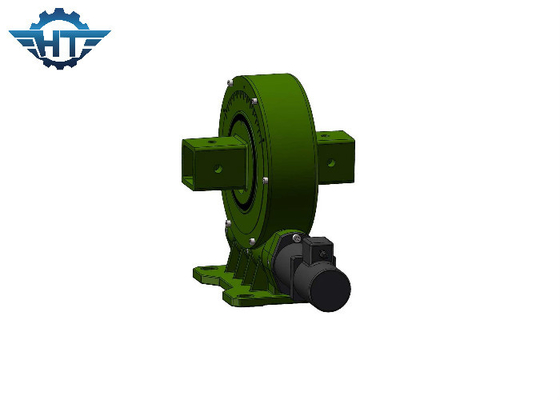

OEM VE9 Slew Drive Gearbox With Heavy Torque, Low Speed For Horizontal Single Axis Solar Tracker
Description
There are two types of solar tracking system, single axis and dual axis tracking system.
Single-axis solar trackers rotate on one axis moving back and forth in a single direction. Different types of single-axis trackers include horizontal, vertical, tilted, and polar aligned, which rotate as the names imply.
The VE series and the SE series slewing drive are used in single axis solar tracking system.
Dual-axis trackers continually face the sun because they can move in two different directions. Dual-axis tracking is follow the sun vertically and horizontally they help obtain maximum solar energy generation.
Drivers
Use electrical motors, 12vdc or 24vdc, nema, hydraulic motor and AC motor to drive the slewing drives, thus driving the system from one side to another.
VE Model Technical Parameters
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | Yes | 251 |
Applications
The slewing ring bearings can be used for a wide range of applications. The areas of deployment range from excavators and cranes, opencast mining and wind turbines, to antenna. Other fields of application include engineering and solar tracking system.
Q&A
1. How can i choose?
Please specify the wheel diameter size, width, voltage, power and no-load speed of the required motors.
2. Could I take samples to test quality and market in advance?
Sure, welcome to take samples to test our quality and service.
3. What's the total cost for samples?
Total sample cost= sample cost + freight
We will give you the best shipping cost after you choose the suitable gear motors
4. How do you ship samples?
Considering sample quantity is not big, we support ship samples by EMS, TNT or Fedex
5. What's your minimum order quantity?
10 sets after samples confirmed
6. What's your delivery time?
For standard samples: within 7days; for batch orders: within 25 days.
