Thông tin chi tiết sản phẩm:
|
| Vật tư: | 50 triệu, 42CrMo | Mô hình: | SDE7 " |
|---|---|---|---|
| Tỉ số truyền: | 57: 1 | Mô-men xoắn đầu ra định mức: | 2000 Nm |
| Giữ mô-men xoắn: | 13500 Nm | Mô-men xoắn nghiêng: | 13200 Nm |
| Hiệu quả: | 40% | Màu tiêu chuẩn: | RAL 9006 |
| Làm nổi bật: | worm gear slewing ring,worm gear motor |
||
IP66 Envelop Dual Axis Worm Drive With 12vdc Electrical Motor For Tower Concentrated Solar Power
Description
What is Tower CSP
The Heliostat concentrated solar power station, as one of the mainstream CSP technology routes, tower CSP has received much attention in recent years. Compared with the mature trough technology, tower photothermal power generation has higher thermal efficiency and concentration ratio, lower terrain requirements, but also has high risks, lack of technical maturity verification, and complex control systems.
At present, the common tower technology in the world is based on molten salt as a molten salt tower for transferring heat medium and a hydrothermal tower with water working medium as a heat transfer medium, and the molten salt tower has a large capacity. The advantages of large-scale energy storage are favored.
Slew Drives Applied In Tower CSP

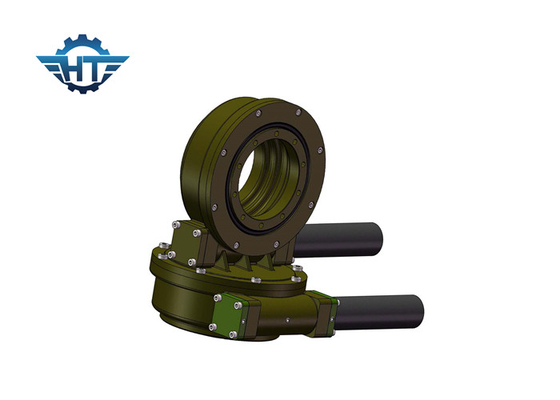

| Product Name | SDE7 Slewing drive with 43Nm 24Vdc gear motors |
| Output Torque | 980 N.m ; 723 ft.lbs |
| Max Output Torque | 1938 N.m; 1429 ft.lbs |
| Tilting Moment Torque | 7000 N.m; 5163 ft.lbs |
| Holding Torque | 13200 N.m ; 9736 ft.lbs |
| Static Axial Rating | 133.20 kN ; 29943 lb |
| Static Radial Rating | 53 kN ; 11977 lb |
| Dynamic Axial Rating | 31.90 kN ; 7171 lb |
| Dynamic Radial Rating | 27.91 kN ; 6274 lb |
| Motor Alternatives | 380V/220V AC Motor ; Stepper Motor ; Brushless Motor |
| Products Style | Dual Axis; Single Axis; CPV/HCPV; Solar Dish; Parabolic; Solar Tower |
| Application Feature | Solar Tracking System, Industrial Machiner |
Slewing drives are perfect for situations requiring both load-holding and rotational torque from the same gearbox. Typical applications include solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts.
Performance Table
| Model | Ratio | Rated Output Torque | Tilting Torque | Axial Load | Radial Load | Holding Torque | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | kN | kN | N.m | degree | Yes | kg | |||
| 3" | 31:1 | 300 | 1500 | 3.6 | 15 | 7000 | 40% | ≤0.1 | Yes | 21kg |
| 5" | 37:1 | 650 | 5000 | 16 | 27 | 9200 | 40% | ≤0.1 | Yes | 32kg |
| 7" | 57:1 | 1750 | 7000 | 34 | 58 | 13200 | 40% | ≤0.1 | Yes | 54kg |
| 9" | 61:1 | 4300 | 16000 | 60 | 130 | 27200 | 40% | ≤0.1 | Yes | 88kg |
| 12" | 78:1 | 5600 | 25000 | 77 | 190 | 40560 | 40% | ≤0.1 | Yes | 157 kg |
| 14" | 85:1 | 6750 | 48000 | 110 | 230 | 44200 | 40% | ≤0.1 | Yes | 214kg |
| 17" | 102:1 | 9460 | 67000 | 142 | 390 | 53040 | 40% | ≤0.1 | Yes | 315kg |
| 21" | 125:1 | 16000 | 89000 | 337 | 640 | 65000 | 40% | ≤0.1 | Yes | 481kg |
| 25" | 150:1 | 21450 | 112000 | 476 | 950 | 89000 | 40% | ≤0.1 | Yes | 682 kg |
Features
1. High backholding torque to improve the solar tracking system's safety
2. Enveloping worm drive inside
3. Multi tooth contact to ensure high load
4. Self-locking function
Applicatons
Customized Services
1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
